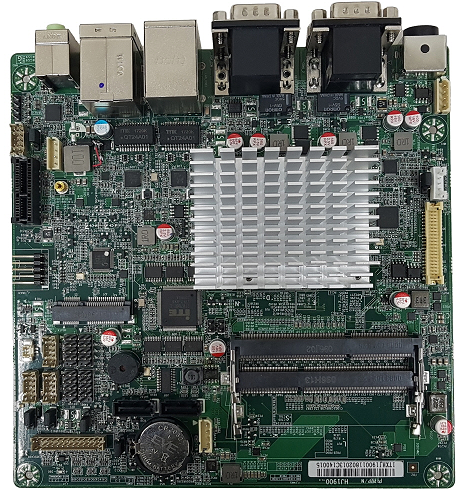

ITX-H1900

General

Processor

Intel^® Bay Trail J1900 CPU, Quad-core, up to 2.42 GHz, TDP 10W

Chipset

N/A

Memory

Up to 8 GB DDR3/DDR3L 1333 MHz, 2*SO-DIMM

Storage

1*SATA 2.0, 1*mSATA

Display

1*VGA: Max Resolution up to 2560*1600

1*LVDS 24Bit Header Max Resolution 1920x1200

Expansion Interface

1*Mini-PCIe (mSATA /PCIEx1 Supported)

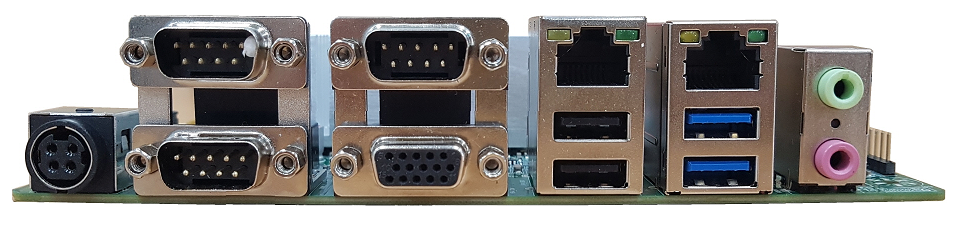

I/O Interface

USB

1 *USB 3.0 I/O, 3*USB 2.0 I/O, 4 *USB 2.0 (2*header),1 *USB 2.0 (touch)

Ethernet

2*RLT8111H^® PCI-E LAN for 1000Mbps

Audio

Realtek^® ALC269 5.1 channel HDA Codec, supports MIC/Line-out Ports

PS/2

1 *PS/2

Serial Port

6 *COM (3XRear I/O,3X Internal)

Parallel Port

1*LPT

GPIO

N/A

Others

N/A

Environment

Dimension

Mini-ITX,170mmx170mm

System

Windows 7/8/10, Server 2008/2012, Linux, Android

BIOS

AMI UEFI BIOS

Power Input

AC IN 12V

Temperature

Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity

Operation: 10%~90%, Storage: 5%~95%, non-condensing
