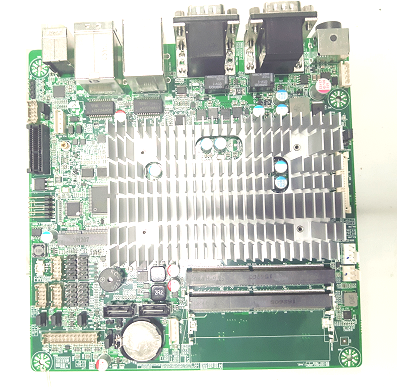

ITX-H6200U

ITX-H6200U 是基于Intel skylake-U 移动平台的,标准MINI-ITX 170*170mm尺寸主板,无风扇设计,可应用于零售,餐饮等行业

性能特点:

2* Slot X DDR4 SO-DIMM up to 16GB

VGA+LVDS

●2*USB 3.0 ,2*USB 2.0

2*RTL8111H RJ45



性能指标和参数

General

Processor

Intel® SkyLake -U  Pentium 4405U/I3-6100U/I5-6200U CPU

Chipset

N/A

Memory

Up to16 GB DDR4 2133 MHz, 2*SO-DIMM

Storage

2*SATA 2.0, 1*mSATA

Display

1*VGA: Max Resolution up to 2560*1600

1*LVDS 24Bit Header Max Resolution 1920x1200

Expansion Interface

1*Mini-PCIe (mSATA /PCIEx1 Supported)

I/O Interface

USB

2 *USB 3.0 I/O, 2*USB 2.0 I/O , 6*USB2.0  internal

Ethernet

2*RLT8111H® PCI-E LAN for 1000Mbps

Audio

Realtek® ALC269 5.1 channel HDA Codec, supports MIC/Line-out Ports

PS/2

1 *PS/2

Serial Port

6 *COM (3XRear I/O,3X Internal)

Parallel Port

1*LPT

GPIO

N/A

Others

N/A

Environment

Dimension

Mini-ITX,170mmx170mm

System

Windows 7/8/10, Server 2008/2012, Linux, Android

BIOS

AMI UEFI BIOS

Power Input

AC IN 24V

Temperature

Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity

Operation: 10%~90%, Storage: 5%~95%, non-condensing
